CAN Termination Sub-D9 Connector

CAN Termination Sub-D9 Connector

529036355
0 Review(s)

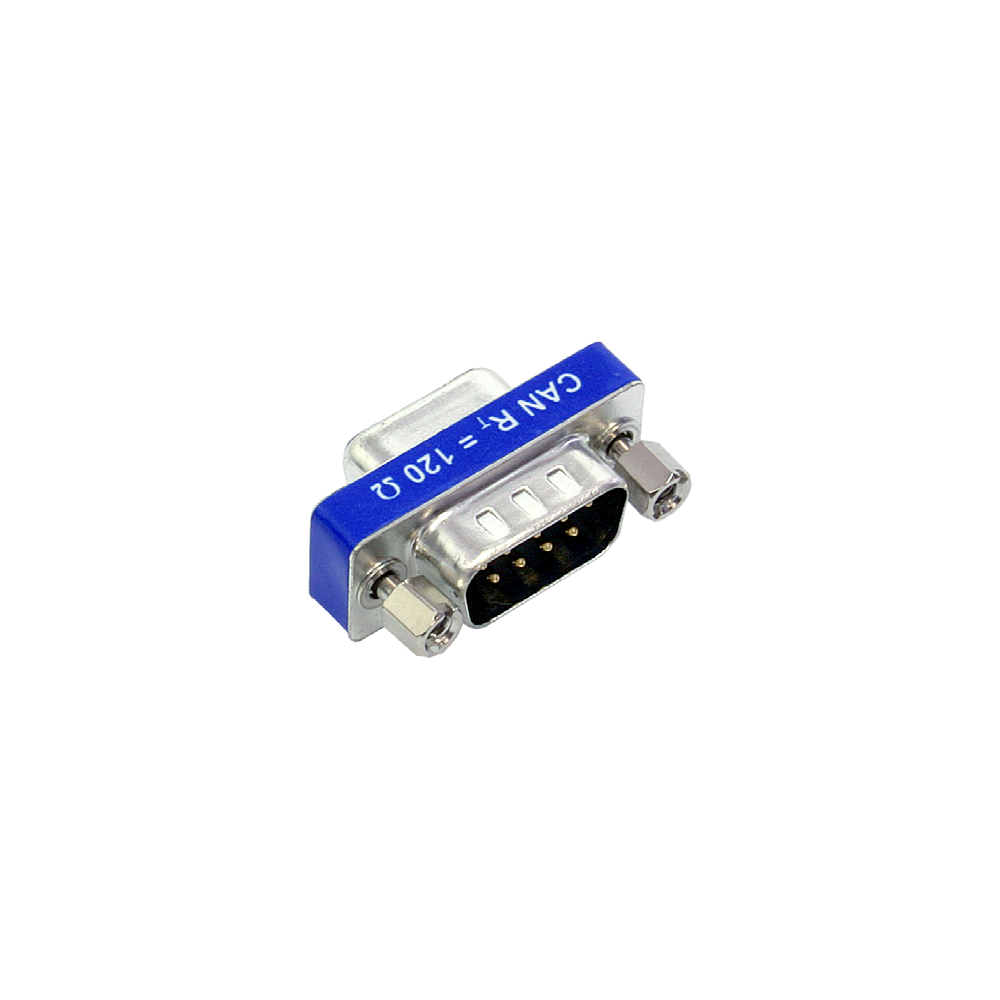

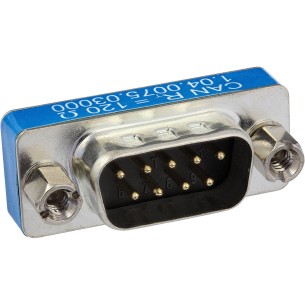

Terminate a high-speed CAN (Controller Area Network) bus with the CAN Terminator. This CAN Terminator consists of a 9-pin D-Sub connector (male), a 9-pin D-Sub socket (female), and a 120 Ohm termination resistor.

€29.00
No tax
Hurry! only 9999851 items left in stock.
Quantity
Buy Now

Add to Compare
Add to Wishlist

Terminate a high-speed CAN (Controller Area Network) bus with the CAN Terminator. This CAN Terminator consists of a 9-pin D-Sub connector (male), a 9-pin D-Sub socket (female), and a 120 Ohm termination resistor.

All CAN networks need two terminators; one at each end of the network. The CAN Terminator can be used where the CAN cable or CAN node at the end does not have internal termination.

Easy connection

Connect and secure with appropriate bolts at each end of the CAN network, where the CAN cable or CAN node at the end does not have internal termination.

BRP recommend for use with BRP MPI-3 diagnostic unit.


Specification

  • 120 Ohm for High-Speed CAN systems according to ISO 11898-2
  • Male to female
  • Pin assignment 1-to-1
  • RT between pin 2 and 7
  • Screw UNC #4-40
: 529036355
